TECHNICAL DATA

/ F-WAVE PHOTOVOLTAIC / TECHNICAL DATA

Solar energy is globally the most under-utilised resource and yet has the greatest potential to provide all of our power requirements.

F-WAVE believes that amorphous silicon solar cells will play a major role in supplying the world’s power needs both today and for future generations to come.

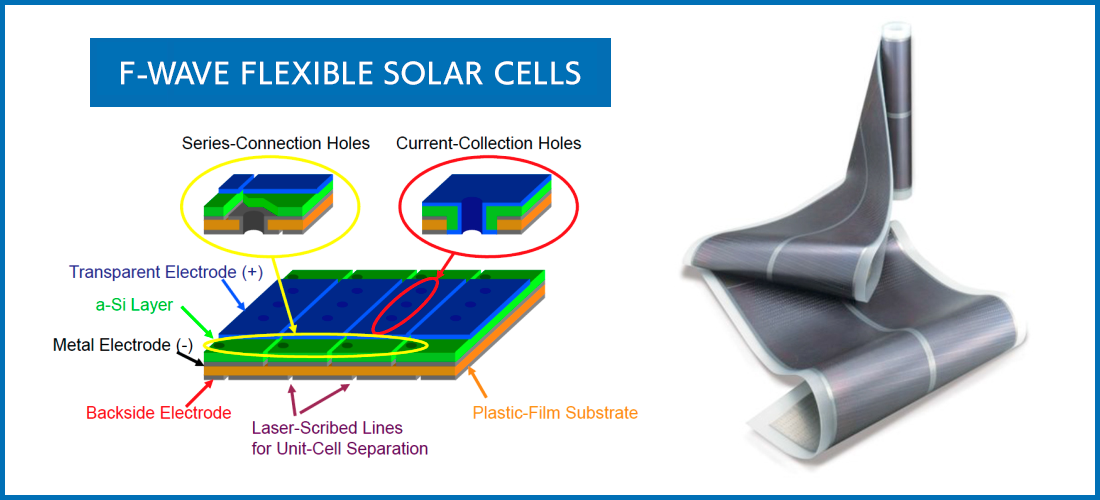

F-WAVE FLEXIBLE SOLAR CELLS

Our flexible solar cells use the unique SCAF (Series-Connection through Apertures formed on Film) structure allowing a wireless connection with our electrodes.

This tandem construction also allows the flexible solar cells to absorb a wide solar spectrum.
Our dedicated roll-to-roll process ensures quality, reliability and cost-effective production.

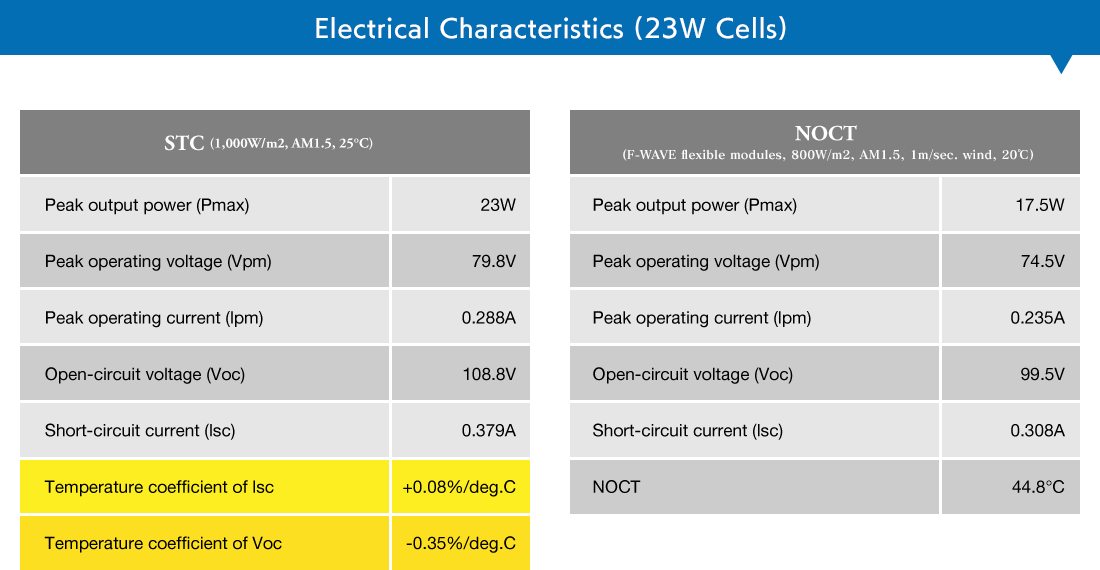

Electrical Characteristics

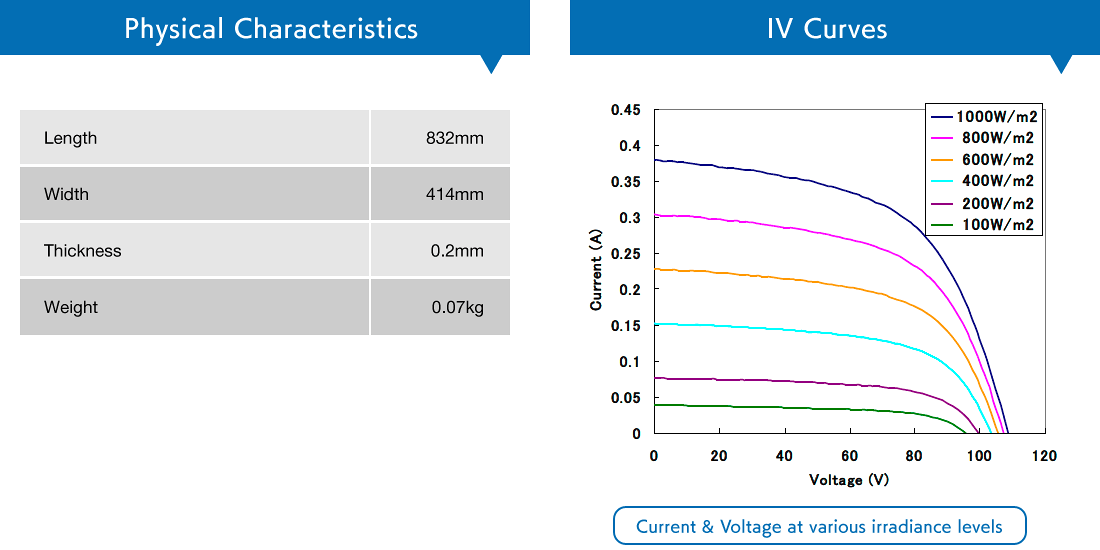

Physical Characteristics , IV Curves

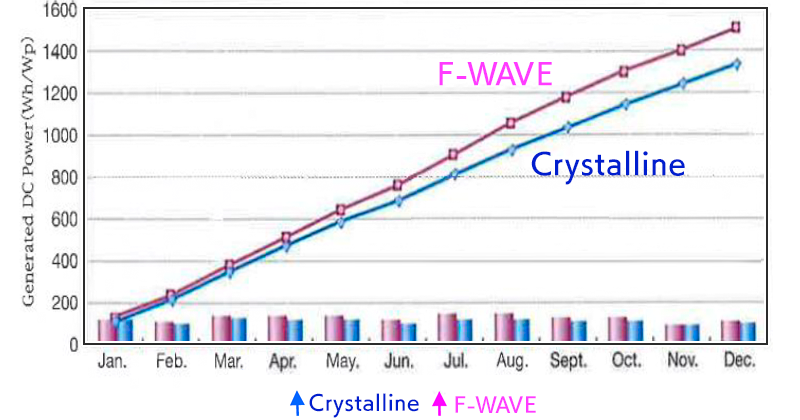

Performance

F-WAVE flexible solar cells have high performance in hot weather due in part to its annealing* effect.

At high temperatures the efficiency of our solar cells increases compared to the decrease in crystalline cells.

*Annealing causes hydrogen atoms to bond returning the power output of an amorphous solar cell to its initial value.

Performance

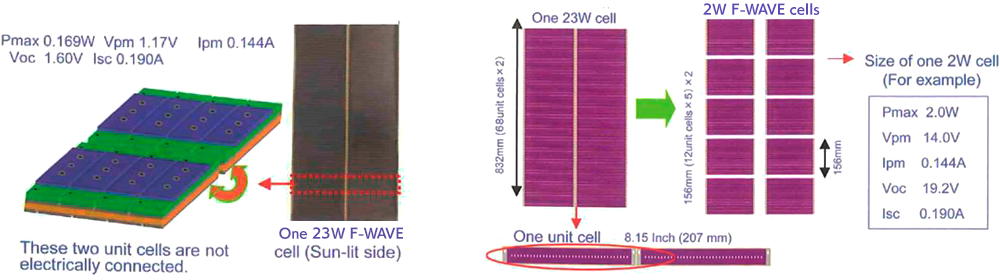

Cell Sizes

Our flexible solar cells are typically supplied as 23W cells,
consisting of 68 unit cells which can be cut to any size allowing their voltages and currents to meet your requirements.

Below is our F-WAVE flexible solar cell cut into 10 x 2W cells.

Cell Sizes
